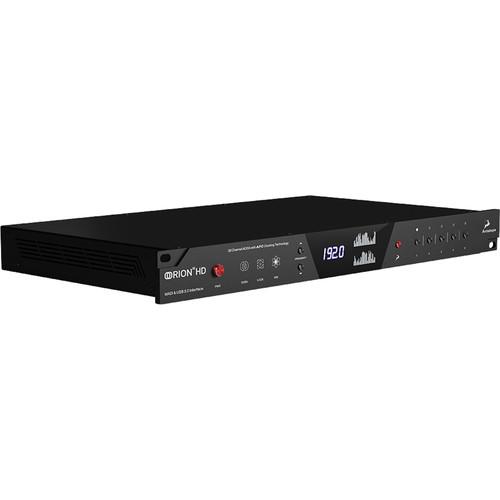

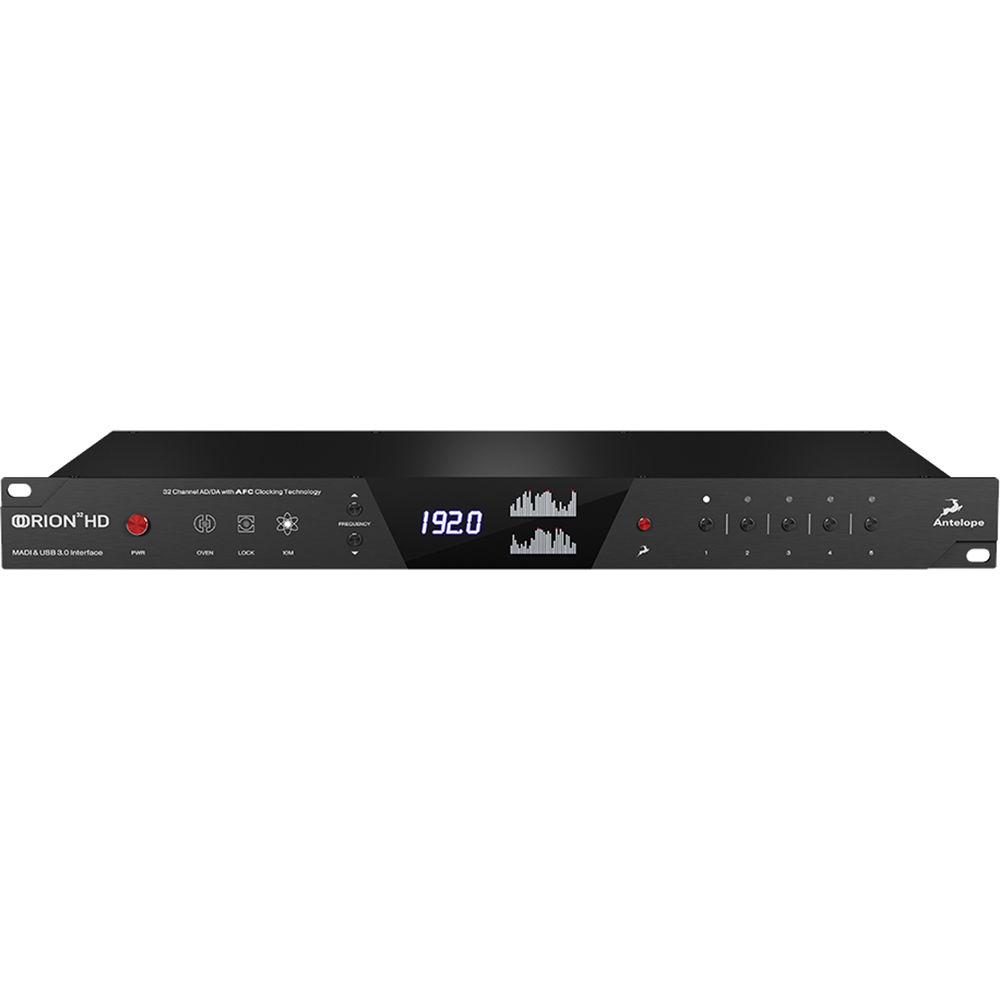

Product description The Antelope Orion32 HD | Gen 3 is an HDX/USB audio interface offering 32 channels of AD/DA conversion and upgraded performance for audio engineers in recording studios and live stage applications. With a redesigned look, expanded dynamic range, and lower THD+N values, the Orion32 HD is designed to visually and aurally enhance your setup. It supports 64 channels of 24-bit / 192 kHz high-resolution audio over USB 3.1 Gen 1 or DigiLink Mini, making it well suited for native DAWs and Pro Tools HDX systems. In addition to 32 channels of analog I/O via DB25 connectors, this interface features powerful digital I/O including fiber-optic MADI, ADAT, and S/PDIF. The dedicated 1/4" monitor outputs are ideal for hooking up a pair of active monitors or a monitor controller.The Orion32 HD | Gen 3 also functions as a master clock, providing the same clarity and precision synonymous with Antelope along with 64-bit AFC (Acoustically Focused Clocking) technology to handle jitter. Two wordclock outputs, a wordclock input, and a 10 MHz atomic clock input allow proper synchronization with a variety of digital equipment.Configure the interface via the front-panel display and buttons. Use the five presets provided for easy store/recall operations. Alternatively, use the macOS- and Windows-compatible desktop app for access to comprehensive routing, mixing, effects chaining, and more. The Orion32 HD | Gen 3 includes a sizeable bundle of 37 Antelope FPGA-based FX, which model heralded audio hardware. - High Channel Counts at 24-Bit / 192 kHz
- Stream 64 channels via DigiLink Mini or USB 3.1 Gen 1 at up to 24-bit / 192 kHz resolution
- Precision AD/DA and Master Clock
- Take advantage of 32 channels of AD/DA conversion regulated by Antelope clocking, including 64-bit AFC jitter-management technology, an oven-controlled crystal oscillator, and a complement of I/Os (two wordclock outputs, one wordclock input, and one atomic clock input)
- Compatible with Native DAWs and Pro Tools HDX
- Connect via USB 3.1 Gen 1 to your host computer for use with your favorite DAW, or plug the DigiLink Mini ports into an Avid Pro Tools system equipped with an HDX card or HD Native hardware (PCIe card or Thunderbolt interface)
- Connectivity Options
- Interface digital equipment via MADI, ADAT, and S/PDIF, and hook up analog gear via DB25 line-level I/O
- Software Control
- Access routing, mixing, zero-latency monitoring, and real-time effects processing from multiple computers on the same network via Antelope's macOS- and Windows-compatible desktop app
- FPGA FX Models
- The Orion32 HD | Gen 3 features 37 effects from Antelope Audio's vast library of FPGA FX models
- Ready for the Rack
- The rack-mountable Orion32 HD | Gen 3 occupies just one 1 RU of rack space
UPC: 853744004786 In the Box Antelope Orion32 HD | Gen 3 32-Channel AD/DA HDX and USB 3.1 Gen 1 Audio Interface Power Cable USB 3.1 Gen 1 Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Antelope Orion32 HD | Gen 3 32-Channel AD DA HDX and USB 3.1 Gen 1 Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAntelope ORION32 HD Specs | | | Channels of I/O | Analog:
32 Inputs / 32 Outputs
Digital:
64 Inputs / 64 Outputs | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | Display and Indicators | 3 x LEDs (Clock Source)
5 x LEDs (Multifunction)
1 x Multi-Segment LED Meter (Sample Rate)
1 x OLED (Multifunction) | | | | Host Connection | 2 x DigiLink Mini (Proprietary)

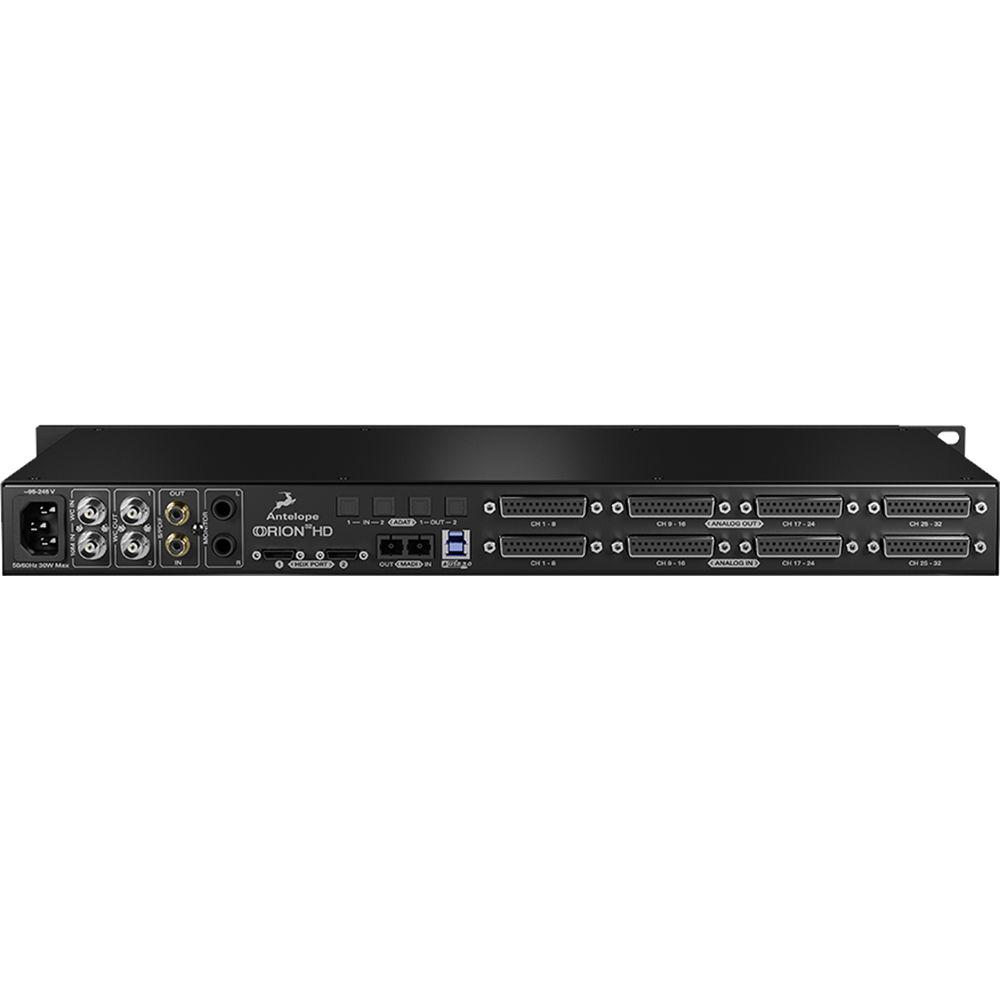

1 x USB Type-B (USB 3.1 Gen 1) | | Analog I/O | 4 x DB25 Balanced 8-Channel Input
4 x DB25 Balanced 8-Channel Output
2 x 1/4" TRS Balanced Monitor Output | | Phantom Power | None | | Digital I/O | 2 x TOSLINK / ADAT (I/O) Input
2 x TOSLINK / ADAT (I/O) Output
1 x RCA Coaxial / S/PDIF (I/O) Input
1 x RCA Coaxial / S/PDIF (I/O) Output
1 x SC-Plug / Optical MADI (I/O) Input
1 x SC-Plug / Optical MADI (I/O) Output
1 x BNC (Atomic Clock) Input
1 x BNC (Loop Sync, Word Clock) Input
2 x BNC (Loop Sync, Word Clock) Output | | MIDI I/O | None | | Memory Card Slot | None | | | | Max Input Level | Line Inputs:
+24 dBu | | Max Output Level | Line Outputs, Monitor Outputs:
+24 dBu | | Dynamic Range | A/D Converters:
124 dB
D/A Converters:
129 dB
Monitor Outputs:
136 dB | | THD+N | A/D Converters:
-112 dB
D/A Converters:
-120 dB
Monitor Outputs:
-120 dB | | | | Sample Rates | Up to 192 kHz | | Bit Depth | Up to 24-Bit | | Sync Sources | ADAT, Atomic Clock, Internal, S/PDIF, Word Clock | | Word Clock Input Termination | 75 Ohms | | | | OS Compatibility | macOS 10.11 or Later
Windows 10 | | Processor Requirement | Mac:
Intel Core 2 Duo
PC:
2 GHz Intel
2 GHz AMD | | RAM Requirements | 4 GB (8 GB Recommended) | | Storage Requirements | 512 MB | | Required Hardware | Available USB Port
USB Cable (Included) | | Internet Connection | Required for Registration | | | | Power Requirements | AC Input | | AC Input Power | 95 to 245 VAC at 50/60 Hz | | Power Consumption | 30 W (Maximum) | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Anti-Theft Features | None | | Rackmount Size | 1 RU (With Included Hardware) | | Dimensions | 19 x 10.63 x 1.75" / 48.26 x 27 x 4.45 cm | | Weight | 8.0 lb / 3.6 kg |
